HUMIDIFIERS FOR YOUR ROOMS
HUMIDIFIER
Humidifiers from Brune to increase
the humidity in your room.
BRUNE humidifiers: suitable for private homes as well as firms and public institutions.
Humidifiers are booming especially in winter – in private surroundings as well as in offices and show rooms. That is because people are especially comfortable at humidity levels between 50 and 60 percent.
Regular heating doesn´t only cause warm, but also very dry ambient air which irritates the eyes and the respiratory system. The personal wellbeing suffers.
Pieces of art also have special requirements as to their surroundings. Apart from external influences – like light incidence – the climatic conditions at the exhibition or storage location play a part in saving values or causing damage.
BRUNE humidifiers provide a remedy. They utilize special evaporation filters that also clean the ambient air. In addition, they are easy to use and use only small amounts of power. Thus BRUNE humidifiers provide optimum climatic conditions in a simple way, while at the same time increasing the personal wellbeing.
Humidifier B 120
Color: White
Air Humidifier B 120: a compact air-humidifying device for living spaces. The Air Humidifier B 120 provides both an efficient and comfortable way to achieve optimal humidity levels in living and working spaces. This device is guaranteed to impress with its combination of energy efficiency and quiet operation. In the colder months, heating devices produce air, which dries out the respiratory tract, and the Air Humidifier B 120 provides a healthy and refreshing indoor climate. Optimal air humidity isn’t only beneficial to one’s health, but also protects furniture, room fixtures and other valuables from possible damage. Thanks to its attractive and compact design, this air-humidifying device can be placed discretely in a variety of spaces and blends in easily with the surrounding decor. The device is ready-for-use upon delivery and provides comfortable air humidity for rooms up to 130 m³. This air-humidifying device is also ideal for use in humidors The Air Humidifier B 120 is also outfitted with an ample water tank, making it suitable for use over an extended period of time. As soon as the optimal humidity level is reached for the given room temperature and the air can no longer be humidified, the device stops the humidification process. The principle of humidification prevents moisture condensation and calcification on furniture and fixtures, as well as excess humidification. When used in combination with an external humidity switch, the Air Humidifier B 120 is ideal for use in humidors, display cases or sales counters and is suitable for the proper storage of tobacco products at a humidity level of 70% in spaces up to 6 m³. Notice:· Regular cleaning and filter changes in accordance with the operating instructions are necessary to ensure hygienic use. · The usual precautionary measures must be taken when handling electrical appliances in order to avoid damage to persons and material. Further information can also be found in the operating manual. Manufacturer: BRUNELuftbefeuchtung Proklima GmbH Schwarzacher Str. 13 D-74858 Aglasterhausen 06262-5454 mail@brune.info
Humidifier B 125
Air Humidifier B 125 for ideal air humidity in living spaces The Air Humidifier B 125 is a device designed to provide the most comfortable level of air humidity during winter months. Operating in near silence, this device is not only perfectly suited to provide optimal air humidity in living spaces, but also in offices and workspaces. This air-humidifying device stands out for its sleek, attractive, lightweight design, making it easy to transport and integrate into any decor. Thanks to its compact size, the Air Humidifier B 125 is also ideal for use in display cases, sales counters and humidors, providing the proper environment for the storage of tobacco products at a 70% relative humidity level. Air humidity for a comfortable indoor environment Due to its highly efficient humidity output, the Air Humidifier B 125 ensures an optimal indoor climate for spaces up to 144 m³. It is also both cost- and energy-efficient and is guaranteed to prevent moisture condensation and calcification on valuable fixtures, furniture, carpets or floors. This air-humidifying device from Brune is outfitted with a 10 liter water reservoir, an innovative solution to problems arising from extended use. Based on the evaporation principle, the humidity output always follows the prevailing humidity and temperature, thereby preventing excessive humidification. Additionally, air passes through a filtration system, which traps large dust particles and allows only purified air to be released. Therefore, the Air Humidifier B 125 is ideal for both living and working spaces, providing optimal wellbeing for people and protecting their valuable furniture and fixtures from damages due to overly dry air. Notice:Regular cleaning and filter changes in accordance with the operating instructions are necessary to ensure hygienic use. The usual precautionary measures must be taken when handling electrical appliances in order to avoid damage to persons and material. Further information can also be found in the operating manual. Manufacturer: BRUNELuftbefeuchtung Proklima GmbH Schwarzacher Str. 13 D-74858 Aglasterhausen 06262-5454 mail@brune.info
Humidifier B 260
Humidifier B 260: robust, durable, easy to use The disc evaporator B 260 convinces with its robust outer housing made of painted sheet steel and the high-qualityplastic elements, which additionally enhance the humidifier and give the product a high durability. Simply cleanIn the B 260 humidifier, the ambient air is drawn in from the room via a special air filter. This pre-cleans it, which helps to reduce pollution of the air and the inside of the unit and thus supports clean operation. The air is then passed through a rotating, moist evaporative filter disc, which is very robust against dirt due to the special material. At the same time,the surface structure of the evaporation filter disc ensures a particularly large evaporation surface (3 m²) due to its special design and thus produces a high, uniform and energy-efficient evaporation according to the cold evaporation principle. In the process, the moisture is released into the room air in gaseous form and foreign substances such as limescale ordirt remain in the unit. Comfortable The structured design of the unit makes maintenance work child’s play. The front grille can be easily removed to the front, thus providing quick access to the evaporative filter disc and the water tank, which can then be pulled out to the front. This allows the tank and the filter to be transported to a sink for cleaning without much effort. The air filter can also beeasily removed and replaced by removing the rear grille. This allows you to carry out maintenance work on the unit quickly and without the use of tools, which supports hygienic and long-lasting operation. Overview The control panel of the B 260 provides quick and clear information about the current humidity in the room, the set fan speed and the fill level of the water tank. If there is no more water in the tank, the unit switches off automatically and signals this to the user by a flashing LED. Convinving Arguments Fast commissioning without installation effort Operation with normal tap water Humidification without precipitation and no limescale on furnishings and fittings high evaporative capacity Electronic control with percentage-accurate humidity measurement and automatic switch-offwith empty water tank Simple operation with the option of setting the target humidity and the fan speed Robust filter due to special filter foam Pre-cleaning of the air by separate filter in the intake area Optional accessories Radio humidity transmitter Optionally, the B 260 can be equippedwith a Radio humidity transmitter. This increases the measuring accuracy and enables the combination with other humidifiers and dehumidifiers from Brune. WLAN/Wifi modul The B 260 humidifier also scores points when it comes to flexibility. Thanks to a supplementary wifi module and the corresponding app, the unit can be controlled and monitored remotely. In addition, the humidifier can be controlled and climate values saved by logging into our Brune web database. Automatic water feed This allows you to connect the B 260 directly to the water pipe. This not only saves you havingto fill the water tank manually, but also enables uninterrupted continuous operation. We recommend using the safety accessories in combination with the automatic waterfeed. Please inform yourself about this. Notice:· Regular cleaning and filter changes in accordance with the operating instructions are necessary to ensure hygienic use. · The usual precautionary measures must be taken when handling electrical appliances in order to avoid damage to persons and material. Further information can also be found in the operating manual. Manufacturer: BRUNELuftbefeuchtung Proklima GmbH Schwarzacher Str. 13 D-74858 Aglasterhausen 06262-5454 mail@brune.info

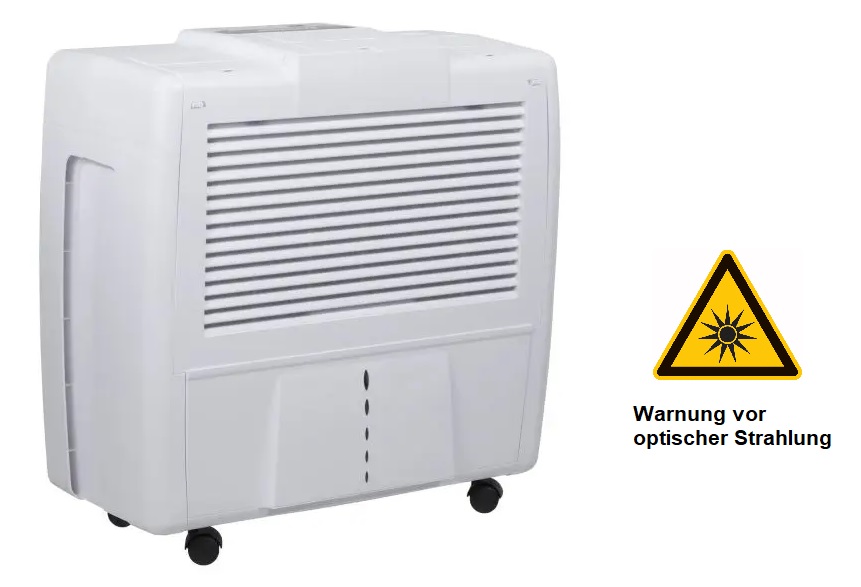

Humidifier B 280
Color: White
The B 280 at a glance Healthy living and working in optimum air humidity: warm air can hold more moisture than cold air. Therefore, the percentage of moisture in ambient air is expressed as the % of relative humidity – a relative humidity of approx. 50-60% is considered to be optimal. In living spaces a temperature of 20-23°C is considered to be ideal, while the ideal room temperature in the bedroom is max. 18°C and for the workplace it is 18-23°C. Particularly in wintertime, a constantly comfortable humidity can be reached by humidification of the indoor air. Key benefits: • electronic control • ready for use – stationary or mobile – without installation • clear control panel with display of the water level, fan speeds, ionization operation and the actual and desired humidity in 1% steps • durable, corrosion free and easy-to-clean plastic housing • adjustable air vents on top • hinged control panel • low power consumption • high reliability through 24-volt operation • low noise emissions • air-cleansing through separate pre-filter and ionization • 8-stage fan with additional automatic function • high evaporation performance through large filter surface • suitable for tap water and purified water • humidification without precipitation and scale deposits in the room Typical examples: • Living rooms • Offices • Music rooms • Libraries • Museums • Galleries • Data processing rooms • Call centers • Laboratories • Archives • Print shops • Hospitals Functionality The humidifier B 280 works on the principle of cold evaporation. It is generally recognized that this manner of operation is best suited for humidifiers. The air is sucked in through a special dust filter at the rear panel and thereby pre-cleaned. Then it passes through the humidification filter, where it is being enriched with plenty of moisture due to the large evaporation surface. Finally, the humidified air exits through the exhaust opening at the front, back into the room. In addition, various other exhaust openings on top of the unit can be opened, providing a more directed distribution of moist air. Fan The B 280 has nine - eight manual and one automatic - air fan levels available. In automatic mode, the unit adjusts the speed – and thus the humidification – automatically to the current needs: the larger the difference between the actual and desired humidity, the faster the fan will work. If the actual humidity approaches the set value, the automatic mode reduces its performance accordingly. Alternatively, eight manual speed settings can be used; these offer the user the opportunity to adapt the performance and the noise level of the B 280 to your individual needs. Operation The control panel of the B 280 offers you fast access to the functions of the unit and informs at a glance about the current situation: humidity value, fan mode, water level (full or empty) and ionization (on or off) are displayed and can be set. In addition, the very clearly designed control panel can be positioned in such a way, that controlling the display becomes even more comfortable. Moisture Control The B 280 has an internal moisture sensor, which constantly measures the current humidity and then displays the value percent accurately on the display. After adjusting the desired nominal humidity value, the device adopts the control autonomously and ensures that the desired value is reached. In the event that particularly accurate humidity values are required, the B 280 is optionally available with a separate humidistat. Ionization The concentration of ions as well as the ratio between positively and negatively charged ions in the ambient air contributes to the air quality. With the ionization of the B 280 you can therefore enhance the quality of the air and thus the wellbeing. Since dust particles accumulate at the ions, the ionization also cleans the air. Water level indicator The unit monitors the filling level of the water tank. Once it is empty, the unit switches off automatically and informs by an indicator on the control panel that water must be refilled. Keyboard lock The B 280 has a keypad lock, which can be activated by means of a hotkey and disables input on the control panel. This way, intentional or accidental changes of the set parameters by unauthorised persons can be prevented. Filters The evaporation filters of the B 280 are made of special filter foam, which has a particularly large evaporative surface due to its porous structure. This ensures the significantly high evaporation performance of the B 280. Options Optionally, the B 280 is available with an automatic water supply, which enables connection of the unit to a water pipe. This eliminates having to manually fill the unit with water. For safety reasons, we recommend the use of appropriate safety accessories as well (water monitor, safety pressure hose and safety collection reservoir). For high-precision humidity value measurements in the room, the B 280 is also available with a wireless sensor system. The humidistat can be placed anywhere in the room and transmits the moisture readings to the unit. Moreover, this system allows a combined operation of the B 280 and the HP 50 dehumidifier. As another option, the B 280 humidifier is available with a UV-C lamp for disinfection. The central position of the lamp makes that the water in the tank, the secondary air, and the inner evaporative filter are subjected to UV-C rays, creating a germ-reducing effect. NOTE: Some discoloration may occur around the UV lamp. This does in no way impair the function or the structure of the unit, and thus does not constitute a fault. Notice:· Regular cleaning and filter changes in accordance with the operating instructions are necessary to ensure hygienic use. · The usual precautionary measures must be taken when handling electrical appliances in order to avoid damage to persons and material. Further information can also be found in the operating manual.· Warning against UV radiation. The optional UV lamp may be visible from the outside; direct view of the UV light should be avoided. Manufacturer: BRUNELuftbefeuchtung Proklima GmbH Schwarzacher Str. 13 D-74858 Aglasterhausen 06262-5454 mail@brune.info
Humidifier B 300
Air Humidifier B 300 for comfortable humidification in living spaces and offices Operating on the evaporation principle, the Air Humidifier B 300 offers a clean and efficient way to increase air humidity in rooms large and small. Not only is this device high-powered and nearly silent in operation, it kills water and airborne germs through the use of UV rays and purifies air of dirt and dust particles. Compact and lightweight, the Air Humidifier B 300 can be used as both a stationary and mobile device thanks to its built-in wheels. The modern and attractive design makes this device easy to incorporate into any design scheme. The Air Humidifier B 300 is capable of automatically regulating humidity levels in offices and living spaces up to 600 m³ in an environmentally friendly way due to its energy-efficient design. The Air Humidifier B 300 – modern design and convenient handling Comprised of only three units - namely the casing, technical unit and water tank - the clever design of the Air Humidifier B 300 makes it both easy to use and clean. In addition to an electronic control system, the user-friendly display panel offers you real-time information about current and optimal relative humidity levels, operating mode (manual or automatic) and the water level in the tank. The device is delivered ready-to-use, making it quick and easy to achieve the desired humidity level for your individual comfort. The Air Humidifier B 300 doesn’t only provide a comfortable and healthful indoor climate in living spaces, but also protects valuable fixtures and furniture against possible damage from excessively dry air. The FanThe fan with auto function – easy switch-offYou can opt between two functions - "manual” or "automatic”. At the manual setting the fan’s performance is adjusted by choosing "high” or "low" or selecting the auto mode. In the latter, the output is controlled electronically; generating a higher or lower output, depending on the requirements of the surrounding air quality. Air and water purification with germicidal UV-C raysA clean jobUV-C rays have a sterilizing effect which is highly effective. Consequently, they are already being used extensively in the process of water treatment. The clever configuration of the germicidal UVC lamp in the B 300 allows water in the water reservoir, the drawn-in air, as well as the filter medium to be "UV-C-rayed". The UV-C lamp provides for optimum germicidal intensity, producing healthier indoor air. This procedure is completely ozone-free and imposes no health risks. Air cleaningClean all around An additional air filter in the air intake duct of the fan filters out dust and other particles. Afterwards the air is passed through water and exhausted back into the room through the evaporator filter, which ensures additional air cleaning. In combination with the intensive disinfecting through the UV-C-lamp, an efficient air treatment has been made possible that ensures even cleaner air. The Water level indicatorThe reservoir doesn´t have to be removed. The control panel informs you about the humidifier’s water level. If the reservoir is empty, the humidifier will shut off automatically and a flashing light will signal that the reservoir must be refilled. Humidity controlNo more worriesYou can leave it to the control system. You can set the humidity level by pressing "+” or "-". The humidifier operates until the selected level is reached and then shuts off automatically. If the humidity level falls below the one originally selected, the humidifier unit switches back on. The Display: Keeps you informed at all times: The display situated on the external surface of the humidifier B 300 keeps you informed at any time. It shows the current relative humidity level in the room, the level of the water reservoir, and the selected fan performance. The keypad lock Safe is safe: if the air humidifier is operating in a publicly accessible space, safety is essential; especially with children around. The B 300 comes with a special safety feature. The keypad of the control panel can be locked by simultaneously pressing the keys "plus” (+), "minus” (-) and "fan” (Air), the keypad will be locked, and the settings can only be changed, by again pressing the key combination. Notice:· Regular cleaning and filter changes in accordance with the operating instructions are necessary to ensure hygienic use. · The usual precautionary measures must be taken when handling electrical appliances in order to avoid damage to persons and material. Further information can also be found in the operating manual.· Warning against UV radiation. The UV lamp may be visible from the outside; direct view of the UV light should be avoided. Manufacturer: BRUNELuftbefeuchtung Proklima GmbH Schwarzacher Str. 13 D-74858 Aglasterhausen 06262-5454 mail@brune.info
Humidifier B 600
Humidifier B 600 professional: Mobile professional large-capacity humidifier for the highest demands. Its structured design, the use of high-quality materials and high performance make the B 600 humidifier a reference in the mobile humidification segment. Its extensive range of accessories makes it flexible, easy to use and ready for immediate use without any major installation effort. The further development of the B 500, appreciated by customers all over the world, also effortlessly meets professional requirements and supports them in maintaining constant climate conditions. Via the WLAN/Wifi system built in as standard, the units can additionally be controlled and operated remotely via the Brune Control App using a smartphone. With the app, you can switch the humidifier on and off, set the humidity and fan levels, receive error messages and much more. The app is available free of charge in the App Store and Google Play Store. The use of the radio humidity measurement system makes the B 600 a true team player. It can be operated together with other humidifiers and dehumidifiers from Brune via a common radio humidity transmitter. The devices thus receive the identical measured value. Due to this overlap-free interaction of the devices, a humidity control system can be created by combining humidifiers and dehumidifiers. This allows a desired humidity corridor to be created in the room. In addition, the devices can be monitored and controlled remotely via the standard built-in Wlan/Wifi system. UV disinfection and lime conversion: UV technology produces a short-wave light that destroys the cell structures of most microorganisms and germs, killing them. In the B 600, the humidifier water is permanently pumped through a stainless steel body in which a UV low-pressure lamp, protected by a quartz glass, has been installed. This creates a thin layer of water between the quartz glass and the stainless steel body, which is irradiated and sterilized very intensively and effectively due to the short distance to the lamp. The purified water is then returned to the water circuit and fed directly to the evaporation filter via the lime conversion cartridge. The lime conversion cartridge uses permanent magnets to generate a magnetic field that changes the molecular structure of the lime in such a way that it is less likely to be deposited on surfaces in the unit. In this way, the evaporation filter is permanently supplied with clean, decalcified water with reduced germs. Hygienic operation through air filtration: Before the air is fed into the unit, it is pre-cleaned by filtering out dust and particles already in the intake area. Different filter types (coarse dust, F 7 and H 10) are available for this purpose. In addition to the general air improvement, the pre-cleaning supports the hygienic operation of the humidifier. During the evaporation process itself, minerals and lime from the water remain in the evaporation filter of the unit.This prevents lime deposits on furnishings. Regular replacement of the filters supports the function and trouble-free operation of the device. The adjustable filter change indicator supports you in this. In winter operation, at the customer's request, the air filtration can be reduced by using the coarse dust filter in favor of the evaporation capacity. However, we recommend the use of the class F 7 filter in combination with the coarsewith the coarse dust prefilter. In summer operation, the humidification function in the operating display can then be deactivated and the B 600 used for air purification. In this case, the use of the higher pre-filter classes (coarse dust in combination with Hepa H 10) and the use of the activated charcoal filter as a replacement for the evaporative filter is recommended. The activated carbon filter additionally absorbs odorous and gaseous substances and thus additionally increases the quality of the air. Please note, however, that the activated carbon filter is not suitable for evaporative operation! Even more comfortable in connecting: The B 600 works with normal tap water or also with treated water. By using a new float technology, the water level measurement of the B 600 works independently of the water quality. Furthermore, the B 600 uses modern quick coupling systems for connection to the water or wastewater network, which allows easy installation or deinstallation without tools. These innovations promise reliable operation and easy handling of the direct water connection. Manual refilling is eliminated, making operation even more convenient. Water is supplied via an electronically controlled solenoid valve that opens when the minimum water level is reached and stops the water supply at a preset maximum level. An automatic flushing device is also available as an option for the B 600 Professional. This gives you the option of simply replacing the water in the tank, thereby reducing limescale and dirt deposits. The residual water is pumped out of the tank via a separate flushing pump and automatically replaced by fresh water using the direct water connection. You can trigger the rinsing process yourself via the touch display of the B 600 or program an automatic rinsing interval. The flushing pump can also be used as a safety pump. If the alarm level is exceeded, it pumps out the excess water until the normal level is reached again. In addition, a warning tone sounds and is shown on the display. Easy operation thanks to a modern display: The modern touch display informs you about the operating parameters such as current relative humidity, room temperature, fan level, maintenance indicators or warning messages. Due to the language selection options, there are several languages to choose from, which significantly increases the comfort. In addition, you can switch to further submenus and make various settings yourself (timer, radio coding, maintenance intervals, pin assignment, Wlan/Wifi settings). Thus you can program the B 600 according to your own ideas and adapt it to your circumstances. Notice: · Regular cleaning and filter changes in accordance with the operating instructions are necessary to ensure hygienic use. · The usual precautionary measures must be taken when handling electrical appliances in order to avoid damage to persons and material. Further information can also be found in the operating manual. · Warning against UV radiation. The optional UV lamp may be visible from the outside; direct view of the UV light should be avoided. Manufacturer: BRUNELuftbefeuchtung Proklima GmbH Schwarzacher Str. 13 D-74858 Aglasterhausen 06262-5454 mail@brune.info
Humidifier B200
The B 200 from Brune is both a powerful humidifier and a comfortable air purifier. Thanks to the large evaporation surface of the modern filter medium, the B 200 can evaporate up to 1 litre of water per hour and is easy to use. In combination with the efficient 4-layer filter consisting of pre-filter, hepa filter, activated carbon filter and UV filter, the B 200 is the perfect partner for healthy room quality. The final treatment of the air using UV light further perfects the result and purifies the air of bacteria, viruses and germs.Thanks to the integrated sensors for relative humidity and air quality, the output is automatically adjusted to the requirements and you can keep a constant eye on the results via the humidity display or the LED display. Change the fan power in 4 stages or use the automatic mode to regulate the power. Use the timer circuit or integrate the B 200 into your home network and control the B 200 easily via app. You have a wide range of convenient control options here. Notice:· Regular cleaning and filter changes in accordance with the operating instructions are necessary to ensure hygienic use. · The usual precautionary measures must be taken when handling electrical appliances in order to avoid damage to persons and material. Further information can also be found in the operating manual. Manufacturer: BRUNELuftbefeuchtung Proklima GmbH Schwarzacher Str. 13 D-74858 Aglasterhausen 06262-5454 mail@brune.info
TECHNICAL DATA
- * at 25°C and 80% r.h.
- ** at 32°C and 80% r.h.
- *** at 30°C and 80% r.h.
| B 120 | B 125 | B 200 | B 260 | B 280 | B 300 | B 600 | |
|---|---|---|---|---|---|---|---|
| Max. air performance in m³/h | n.a. | n.a. | 500 | 500 | 500 | 600 | 900 |
| Max. evaporation performance in l/h | n.a. | n.a. | 1,0 | 1,1 | 1,2 | 1,4 | 2,6 |
| Operating noise in dB | 34 | 34 | 32-55 | 30-50 | 32-44 | 32-40 | 32-58 |
| Max. room size in m³ | 130 | 140 | 500 | 500 | 500 | 600 | 1000 |
| Max. power consumption in W | 25 | 25 | 55 | 65 | 45 | 58 | 130 |
| Water tank in l | 11 | 11 | 8 | 20 | 25 | 25 | 50 |
| Empty weight in kg | 3,6 | 4,2 | 11,2 | 18,4 | 14 | 19 | 28 |
Humidifiers allow you to regulate the humidity in private or public rooms. Choose one of our innovative devices depending on your humidification requirements, the size of the room and the time of year. We will advise you on your choice and show you when it is essential to use it. Find out what advantages humidifiers offer you in everyday life. Some figures provide interesting insights into the importance of indoor air and its quality for us humans.
An adult takes in around 13,000 litres of air every day, which corresponds to around 29,000 breaths, including exhalation. This happens via the nose, mouth and throat. Now you need to know that the humidity in combination with the temperature can create a pleasant or unpleasant feeling, depending on how you feel. A slightly higher humidity level of 60 to 70 per cent at a temperature of only 17 to 18 degrees Celsius is quite pleasant for many people. This makes it possible to reduce heating costs for a short time by using a humidifier.
Advantages
Studies show that the ideal climate situation is achieved in a room with around 50 per cent humidity and 20 degrees Celsius. A humidity level of between 40 and 60 per cent is considered normal and comfortable, but is often exceeded or fallen short of. You can use a humidifier to regulate the relative humidity of rooms that are too dry.
People suffer from excessively dry air in winter, for example. This is primarily due to the heating, which causes the relative humidity to drop. The consequences are dry skin, burning eyes and problems with the respiratory tract. A humidifier provides a remedy and ensures a positive balance. Apart from people, certain objects are also dependent on a "healthy" indoor climate. This applies to furniture and especially to works of art such as paintings or sculptures made from natural materials. In this way, the humidifier actively contributes to preserving the value of the artefacts. In renowned museums with expensive exhibits, controlling and regulating the temperature and humidity is therefore indispensable.
With a humidifier of the latest generation, you can adjust the moisture supply individually or react spontaneously to changes. In the best case scenario, you can prevent the following negative phenomena with a humidifier:
- Burning eyes
- Problems with the respiratory tract (scratchy throat)
- More severe manifestation of existing asthma
- Dry skin
- Irritation with neurodermatitis (redness, eczema)
- Damage to works of art, furniture and musical instruments
- Increased dust levels in the air
- Longer shelf life and longer transmission distances for viruses
- Damage to parquet floors
- Electrostatic charging
Physical principles of air humidification
The total amount of water vapour present in a given volume of air is referred to as absolute humidity or vapour pressure and is expressed in grams per m³ of air. The maximum amount of water vapour that this volume of air can absorb increases with temperature. Relative humidity (commonly known as relative air humidity) is the percentage ratio between the maximum possible amount of water vapour at a certain temperature and the actual amount currently present in the air volume. It follows that simply increasing the air temperature (e.g. by heating) will reduce the relative humidity in the room.
What you should consider when buying a humidifier
In our selection, we differentiate between various systems with a tank and a direct connection to the water system. There are three different humidification systems: vaporiser, evaporator or atomiser. In addition to the type and method, other aspects are also relevant for you when purchasing. For many users, the weight or noise level also plays an important role. In terms of weight, the models vary from less than 4 kg for the smallest devices to a maximum of 21 kg for the largest model. However, the larger appliances are equipped with castors, which ensures easy handling of the appliances.
Checklist for purchasing a humidifier
Humidifier type
Noise pollution (in decibels)
Power consumption
Room size
Weight
In our selection you will discover devices that, depending on the type of fan, only reach an operating volume of 30 to 40 dB. This puts us in the range from whispering to a background noise comparable to a quiet residential street at night. Our large devices for larger living spaces, offices or public buildings reach 44 dB.
These are equipped with a multi-stage fan, allowing the fan noise to be adjusted to the situation as required.
The size of the room, from a small living room to an open-plan office, is another important factor. It is important when buying a suitable appliance. Here you can remember the following rough categorisation: The humidifier should be able to circulate the air in the entire room at least once an hour. This means that a device with an air capacity of 150m³, for example, can humidify a maximum room size of 60m² at a room height of 2.50 metres. This is highly dependent on whether it is a closed room and no negative factors (ventilation, tiled stove) influence the humidification. It is better to design the device a little larger, as this achieves the humidification result more quickly and allows comfortable operation with a lower noise level or a lower fan speed.
A final point is energy consumption. The necessary power supply is provided by a mains plug (230 V). The devices are not only quiet, but also economical in terms of consumption, depending on the power. The smallest humidifiers require less than 25 W, while the large version requires a maximum of 90 W. They are easy to put into operation without any major installation work.
Humidification types
In general, there are three different types of humidification, which have their advantages and disadvantages depending on the application.
In an evaporator, the air is channelled through or over a moist filter mat by means of a fan, where it absorbs the moisture independently via the surface (evaporation). Atomisers, often also referred to as nebulisers, atomise the water into very fine particles via a rapidly vibrating ultrasonic membrane or a very fine nozzle, which then dissolve in the air. They are considered less suitable as the water particles are susceptible to germs. In contrast, so-called vaporisers.
With them, the water is heated, vaporised and released into the room air in the form of water vapour. On the one hand, this has a positive effect on the noise level and, on the other, they kill germs through the heat. However, they often have very high energy and maintenance requirements.
How do our humidifiers work?
Humidifiers from Brune work economically and quietly and you can equip them with various air filters for an ideal room climate. Despite all the technology, ease of use, a good overview and safety are emphasised. It is easy to change filters or connect the appliance. However, the following always applies when working on the appliance: disconnect it from the power supply and pull out the mains plug.
You have read in the previous paragraph that the liquid can contribute to germ formation. This is a problem that our models actively tackle and solve using innovative technology. Some of our humidifiers are equipped with filters for air purification and a special UV lamp for water purification. The air filters in the intake area filter out airborne particles and coarse dust.
Before the air leaves the appliance, it passes through an evaporation filter and the UV light from the lamp additionally sterilises it. This results not only in humid, but also significantly cleaner room air.
You can easily replace the filters, for which we provide clear videos. The same applies to the motor units or checking the UV lamp.
The humidifiers in our range are suitable for all conceivable environments and are simply adapted to the size of the room in terms of size and output. You use them in offices, storage rooms, lounges and living rooms.
The smaller devices are lightweight and can be easily positioned to save space. The humidifiers with a large water tank are flexible in use. You determine the level of humidity via input and monitor the process without any effort. Our devices are discreetly designed and available in white, grey/anthracite or silver. All other parameters can be found in the data sheets on the product pages.
Article overview:
B 120, 11 litre, 3,6 kg
B 260, 20 litre, 17 kg
B 280, 25 litre, 14 kg
B 300, 25 litre, 19 kg
B 600, 50 litre, 28 kg
What systems are available?
We have briefly described the general types of humidification above. At this point, we will look at two systems relating to the water supply. All appliances have a tank which, depending on its capacity, ensures that the air in the room in question is humidified for many hours. The large appliances have an integrated 50-litre tank that you need to refill as required.
When the water tank is empty, the humidifier switches off automatically. You receive a signal via a light and know exactly when you need to refill the tank so that your humidifier can continue working. The water level indicator shows you how much water is left in the tank at all times. You do not have to remove the tank at any time.
As an alternative to the tank, it is possible to connect the appliance directly to a water supply, which enables continuous operation. To do this, book an automatic water supply. This option is just one of several conceivable extensions to make using your new humidifier more convenient.
Use the humidifier wisely in winter
Humidifiers are particularly popular in winter, as heating systems run at full blast during the cold season. The problem is that these not only generate heat, but also room air that is too dry. As people only feel comfortable at a humidity level of between 50 and 60 per cent, the best way to correct this imbalance is with a Brune appliance.
After just a short time, the room air becomes noticeably more pleasant and humid. Thanks to the humidifier, you can prevent health problems and protect your valuable artefacts. Like the humidifier, the heater does not run continuously. To use the humidifier sensibly, adapt its operation to your heating behaviour!
Select the humidifier according to room size
In the checklist, you have read which standard sizes are available for humidifiers. Select a device that is designed for your room size. For larger office complexes, it makes sense to install several humidifiers in suitable locations, depending on your requirements. Our XL model, the B 600 humidifier with a 50-litre capacity, humidifies the air in rooms up to 900 m³ in size.
In comparison, our B 125 humidifier is sufficient for rooms up to 140 m³. You can use the small mobile devices flexibly wherever you need them.
Is a humidifier suitable for use with floor heating?
Yes, it is. As is so often the case, this is a question of measure and centre. Underfloor heating systems are installed under the floor covering, which in turn reacts to different conditions. The technology remains unaffected by the devices. Regardless of whether you install modern laminate, vinyl or parquet flooring, expansion is planned for, as the floor also "breathes" and reacts to humidity and temperatures.
Too much moisture is primarily not recommended for sensitive floors. Extreme humidity over long periods of time would therefore first affect the floor covering and possibly the underfloor heating. If your humidifier is used correctly, all values are balanced and use with underfloor heating is not a problem. Please ask our experts about this.
Brune humidifiers are even suitable for other sensitive areas and rooms: IT rooms, libraries and print shops, laboratories, telephone exchanges. As they work exclusively according to the evaporation principle, overhumidification is impossible. They are easy to handle and economical to operate.
